MVR in DMF recovery
MVR in DMF recovery
The MVR (Mother Vapor Recompression) function in DMF (Dimethylformamide) recovery systems is a key energy-saving technology used to enhance efficiency in solvent recovery processes, particularly in industries like pharmaceuticals, chemicals, and synthetic leather manufacturing, where DMF is widely used.
Role of MVR in DMF Recovery Plant
- Energy Efficiency
- Traditional distillation for DMF recovery consumes significant energy due to high boiling points (~153°C for DMF).
- MVR (Mechanical Vapor Recompression) reduces energy consumption by compressing and reusing vapor instead of relying solely on fresh steam.
- Process Overview
- Evaporation: Contaminated DMF (e.g., from wastewater or spent solvent) is heated to form vapor.

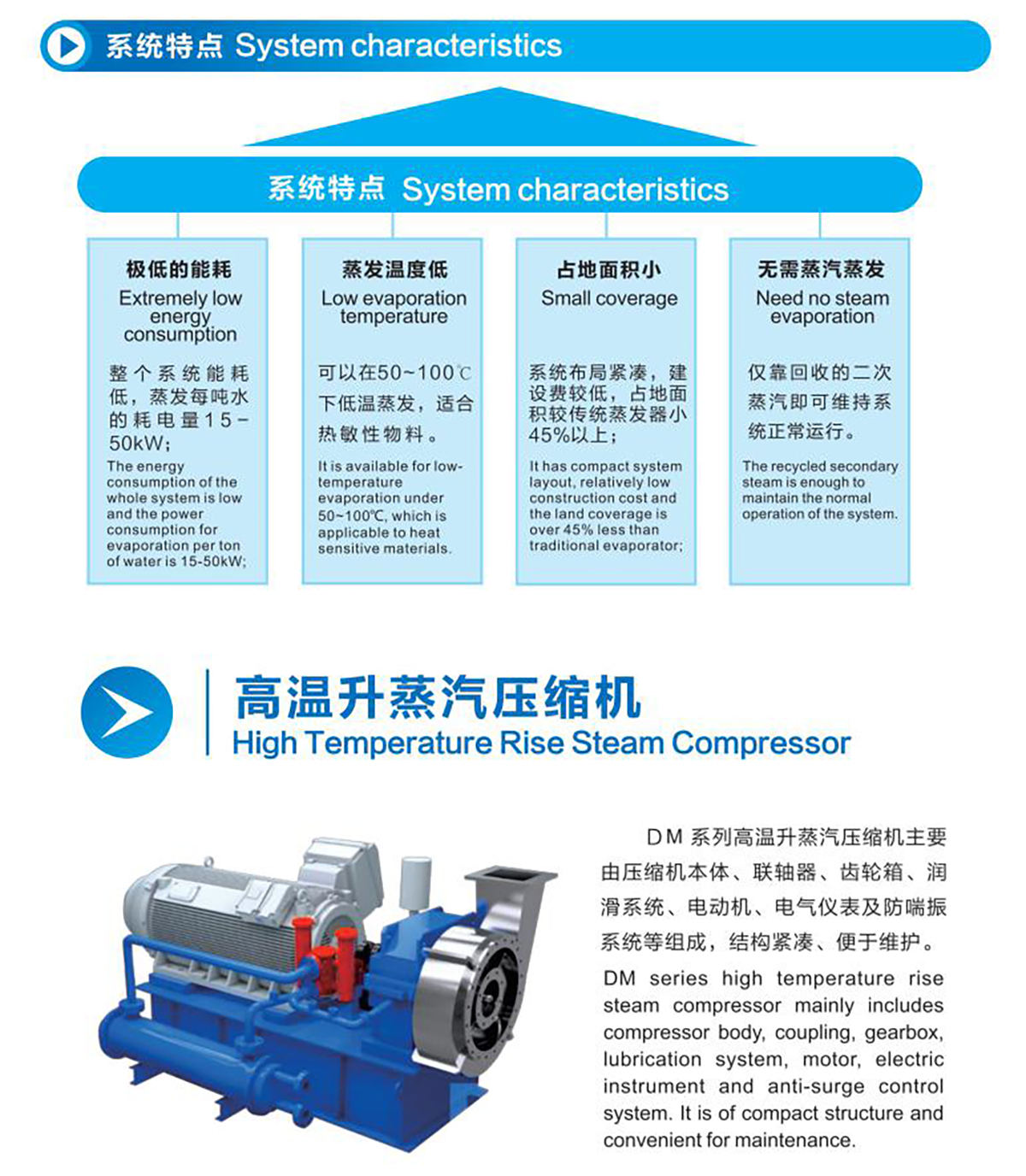

- Vapor Compression: The MVR compressor increases the pressure and temperature of the vapor, allowing it to be reused as a heating medium.
- Condensation & Recovery: The compressed vapor transfers heat to the incoming feed, condenses, and is distilled to recover pure DMF.
- Advantages of MVR in DMF Recovery Plant
- Lower Operating Costs: Reduces steam consumption by up to 80% compared to conventional distillation.
- Higher Purity: Efficient separation of DMF from water and other impurities.
- Environmental Benefits: Decreases wastewater discharge and carbon footprint.
- Comparison with Traditional Methods
- Conventional Distillation: Requires continuous steam input, leading to high energy costs.
- MVR System: Recovers and recycles latent heat, drastically cutting energy usage.
Conclusion
The MVR function in DMF recovery plant optimizes solvent recycling by significantly reducing energy consumption while maintaining high recovery rates (typically >99% purity). This makes it a preferred choice for sustainable and cost-effective industrial DMF recovery systems.
