Automatic Soap Flow Wrapping Machine

Short Description:

Suitable for : flow pack or pillow packing, such as, soap wrapping, instant noodles packing, biscuit packing, sea food packing, bread packing, fruit packing and etc.


Product Detail

Product Tags

Video

Working process

Packing Material:PAPER /PE OPP/PE, CPP/PE, OPP/CPP, OPP/AL/PE ,and other heat-sealable packing materials.

Automatic Pillow Packaging Machine01

Electric parts brand

Item

Name

Brand

Origin country

1

Servo motor

Panasonic

Japan

2

Servo driver

Panasonic

Japan

3

PLC

Omron

Japan

4

Touch Screen

Weinview

Taiwan

5

Temperature board

Yudian

China

6

Jog button

Siemens

Germany

7

Start & Stop button

Siemens

Germany

WE may use same high level international brand for electric parts.

Automatic Pillow Packaging Machine03 Automatic Pillow Packaging Machine01 Automatic Pillow Packaging Machine02

Characteristic

The machine is with very good synchronism, PLC control, Omron brand, Japan.
● Adopting photoelectric sensor to detect the eye mark, tracking fast and accurately
● Date coding is equipped within the price.
● Reliable and stable system, low maintenance, programmable controller.

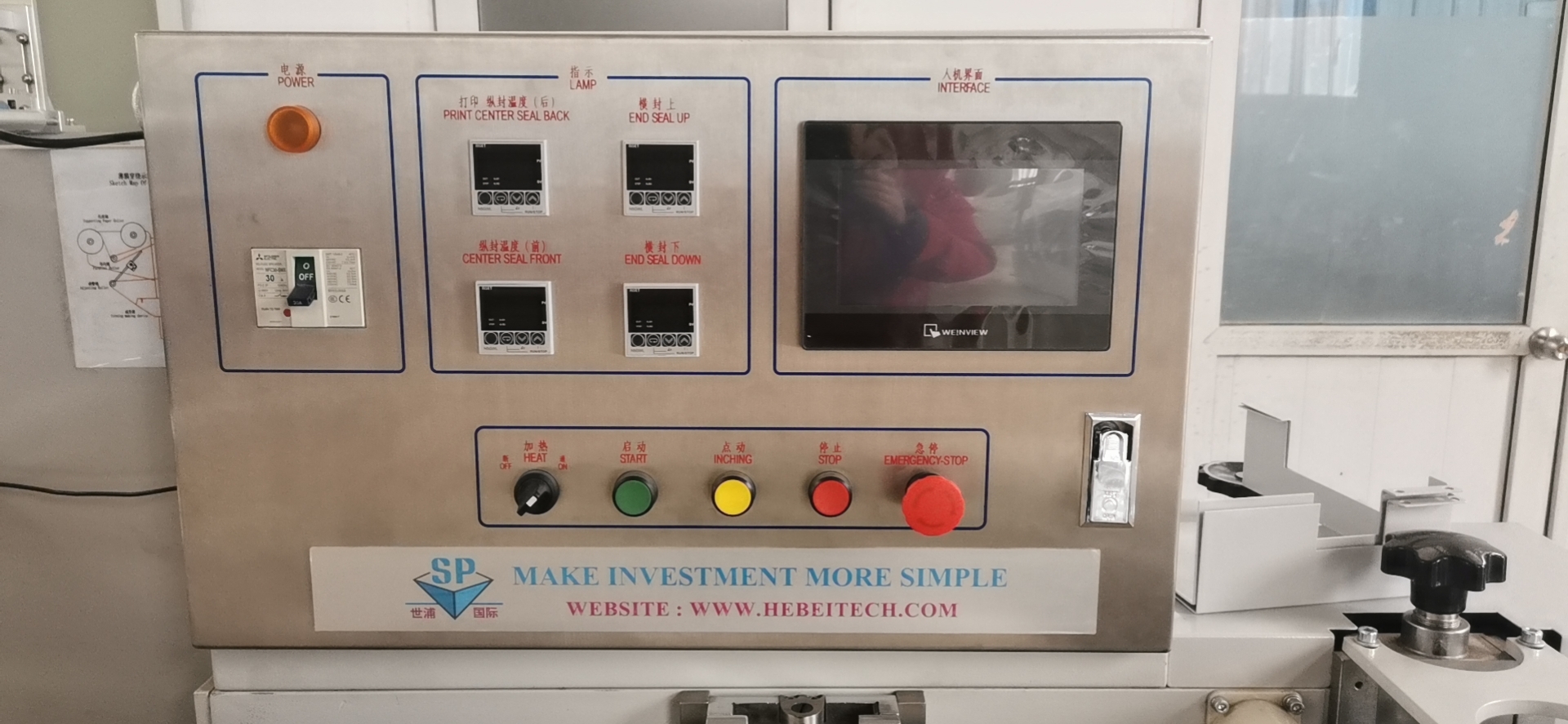

● HMI display contains length of packing film, speed, output, temperature of packing etc.
● Adopt PLC control system, reduce mechanical contact.
● Frequency control, convenient and simple.
● Bidirectional automatic tracking, color control patch by photoelectric detection.

Machine specifications

Model SPA450/120
Max  Speed  60-150 packs/minThe speed depend on the shape and size of products and film used
7” size digital display
People friend interface control for easy to operate
Double way tracing eye-mark for printing film, accurate control bag length by servo motor, this make operate convenient to run the machine ,save time
Film roll can be adjustable to guarantee the longitudinal sealing in line and perfect
Japan brand ,Omron photocell ,with long time durability and accurate monitoring
New design longitudinal sealing heating system ,guarantee stable sealing for center
With human friendly glass like cover on end sealing, to protect operate avoid of damage
3 sets of Japan brand temperature control units
60cm discharge conveyor
Speed indicator
Bag length indicator
All parts are stainless steel nos 304 pertaining on contacting the product
3000mm in-feeding conveyor
Our company, introduced Tokiwa technology, with 26 years of experience, exported to more than 30 countries, we welcome your visiting to our factory at any time.

Main technical data

Model

SPA450/120

Max film width(mm)

450

Packaging rate(bag/min)

60-150

Bag length(mm)

70-450

Bag width(mm)

10-150

Product height(mm)

5-65

Power voltage(v)

220

Total installed power(kw)

3.6

Weight(kg)

1200

Dimensions (LxWxH) mm

5700*1050*1700

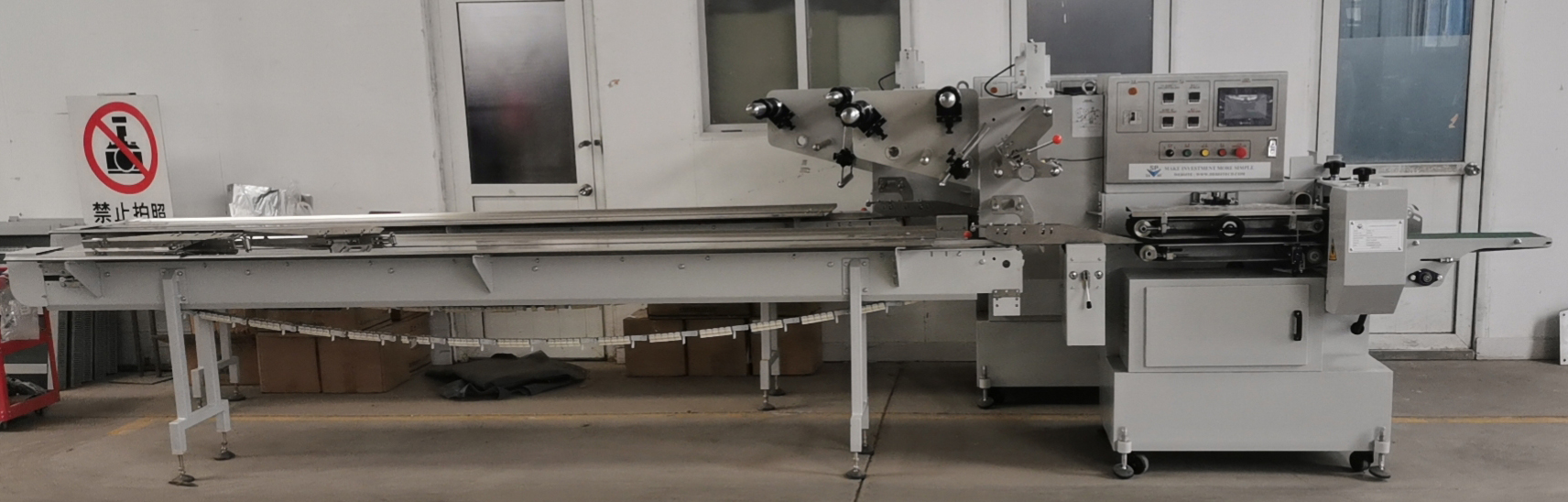

Equiment details

04微信图片_20210223114022微信图片_20210223114043微信图片_20210223114048
